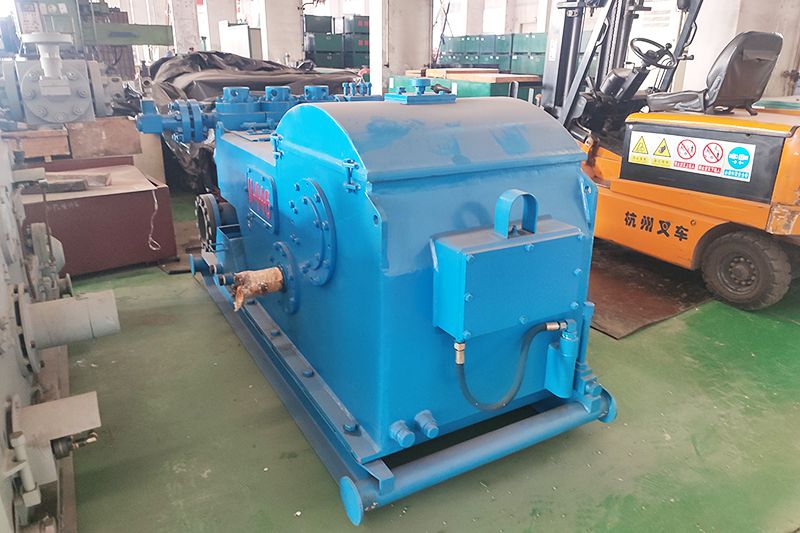

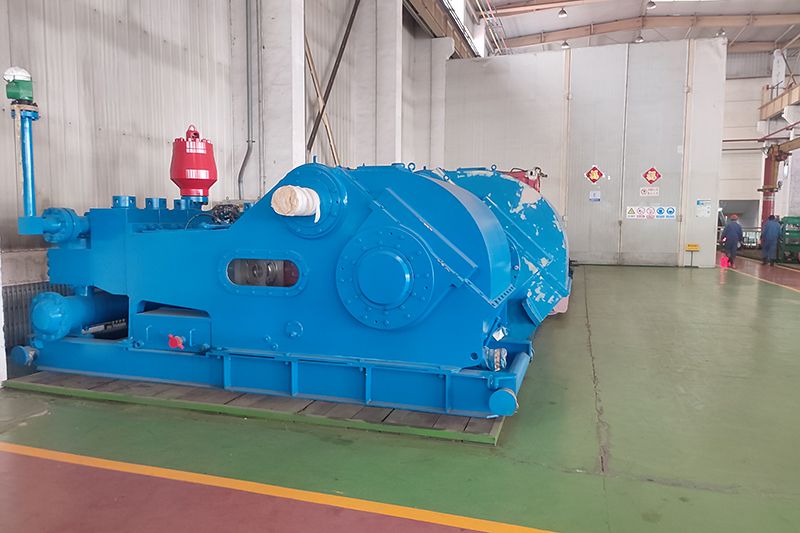

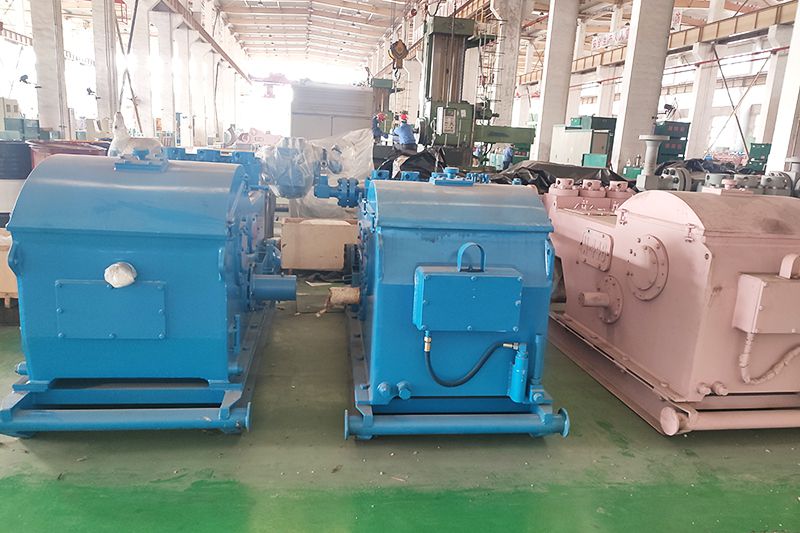

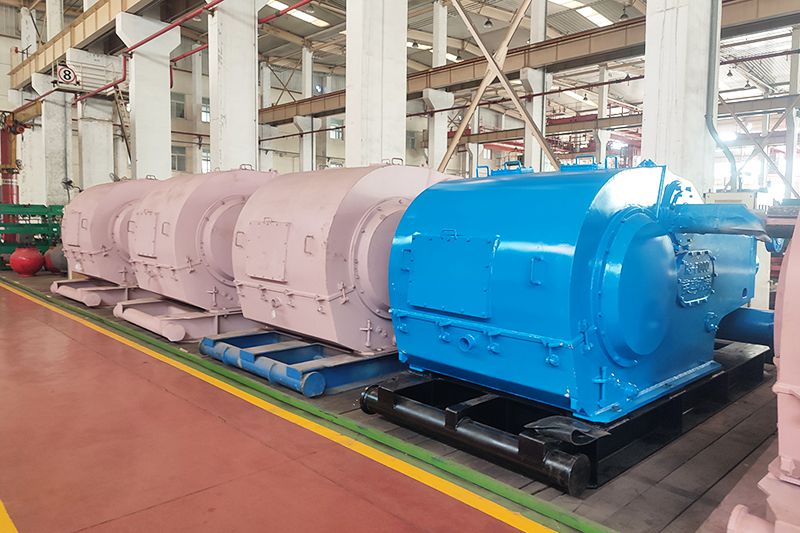

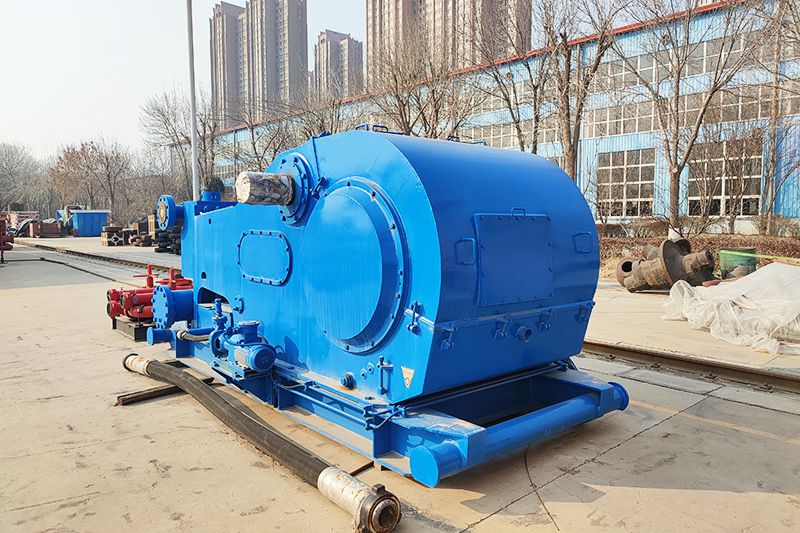

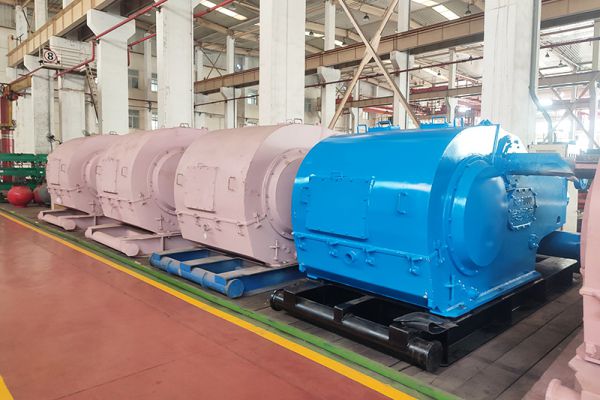

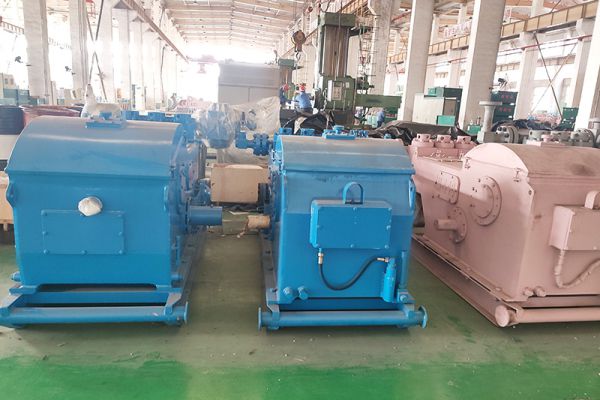

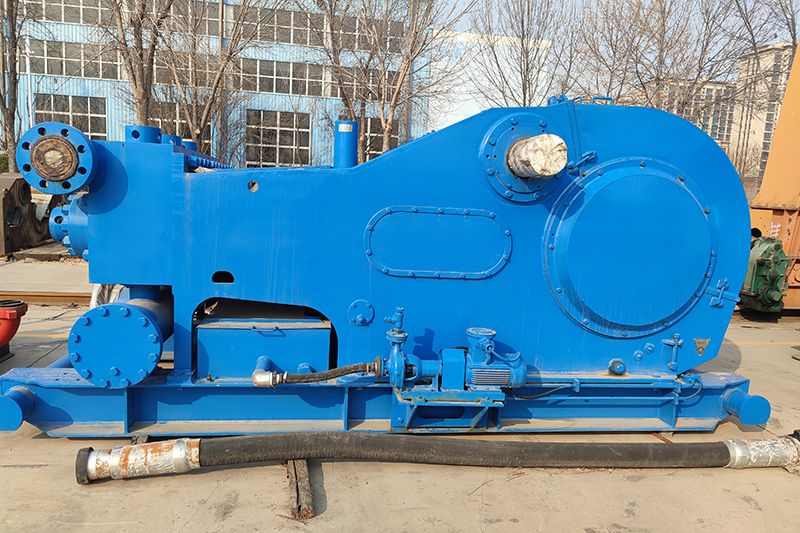

Mud Pumps

Mud Pumps

A mud pump is a piece of equipment for transporting heavy mud and other dense fluids in wells and other industrial applications. The well pump’s main function is pumping mud from the well bore to the well bottom so as to cool drills, wash away drill cuttings and maintain the well stability. The mud pump is thus considered as the core of a drilling system.

Request a Quote
Features
  • Able to create high pressures to pump large flows
  • Various pump structures to adapt to different oilfields
  • Reliable operation and a long service life
Applications
  • Oil drilling: used to pump heavy mud to lubricate the drill and the well wall and clean drill cuttings
  • Mining: used to pump dense materials like coal gangue and ores
  • Construction: used to pump cement mud, mortar and other construction materials
  • Chemical industry: used to pump dense chemicals
Technical Parameters
Model
LCF-500
LCF-800
LCF-1000
LCF-1300
LCF-1600
LCF-1600HL
Rated Power Input 370kW(500HP) 590kW(800HP) 746kW(1000HP) 960kW(1300HP) 1193kW(1600HP) 1193kW(1600HP)
Rated Strokes 165SPM 150SPM 140SPM 120SPM 120SPM 120SPM
Stroke Length 191mm(7.5″) 228.6mm(9″) 254mm(10″) 304.8mm(12″) 304.8mm(12″) 304.8mm(12″)
Gear Ratio 4.286:1 4.185:1 4.207:1 4.206:1 4.31:1 4.31:1
Valve Chamber Size API 5# API 6# API 6# API 7# API 7# API 7#
Max. liner diameter 6 3/4″ 6 3/4″ 6 3/4″ 7″ 7″ 7″ 1/4
Rated Pump pressure 34.5Mpa 34.5Mpa 34.5Mpa 34.5Mpa 34.5Mpa 51.9Mpa
Suction Bore Size 203mm(8″) 254mm(10″) 305mm(12″) 305mm(12″) 305mm(12″) 305mm(12″)
Discharge Bore Size 4 1/16″ flange 35Mpa 5 1/8″ flange 35Mpa 5 1/8″ flange 35Mpa 5 1/8″ flange 35Mpa 5 1/8″ flange 35Mpa 5 1/8″ flange 52Mpa
Pinion Shaft Diameter 139.7mm(5 1/2″) 177.8mm(7″) 196.85mm(7 3/4″) 215.9mm(8 1/2″) 215.9mm(8 1/2″) 215.9mm(8 1/2″)
Keys 31.75*31.75mm 11/4″*11/4″ 44.45*44.45mm 13/4″*13/4″ 50.8*50.8mm 2″*2″ 50.8*50.8mm 2″*2″ 50.8*50.8mm 2″*2″ 50.8*50.8mm 2″*2″
Overall Dimensions 3685*2709*1543mm 3963*3024*1694mm 4269*3167*1818mm 4615*3260*2004mm 4815*3260*2004mm 5200*2503*2032mm
Weight 9770kg 14500kg 18790kg 25850kg 26100kg 28400kg
