Mud and Cement Hoses

API Spec 7K Rotary Drilling Hoses for Oilfield Drilling Applications

  • Mud and Cement Hoses
  • Mud and Cement Hoses

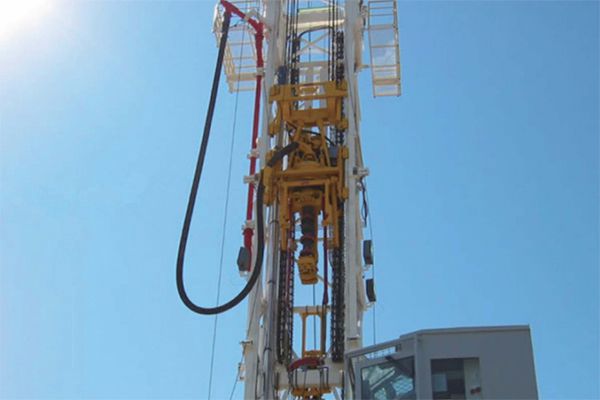

Mud and cement hoses are usually applied in oil drilling and mud transport. The drilling hoses can be used to connect drilling risers and vertically moving taps, connect mud pump pipelines and drilling risers to reduce the impact of vibration and to transport large quantities of water- or oil-based mud under high pressure. The mud transport lines are H2S-resistant.

Request a Quote
Structure (from the inside to the outside)
  • Inner rubber tube or inner stainless steel tube;
  • Carbon fiber reinforcement layer;
  • Middle rubber layer;
  • Steel wire reinforcement layer;
  • Outer carbon fiber layer
Features
  • The mud and cement hose’s reinforcement layer adopts imported high-strength steel wires.
  • The drilling hose adopts imported rubber and our company’s special formula for the inner rubber layer. The hose is thus H2S resistant and able to withstand high-speed flows of oil- and water-based mud as well as extreme weathers.
  • With identical bore diameters, the couplings can be perfectly connected to the tube without leading to choked and eddy flows and cut loss.

Media delivered: oil- and water-based mud and fluids containing H2S

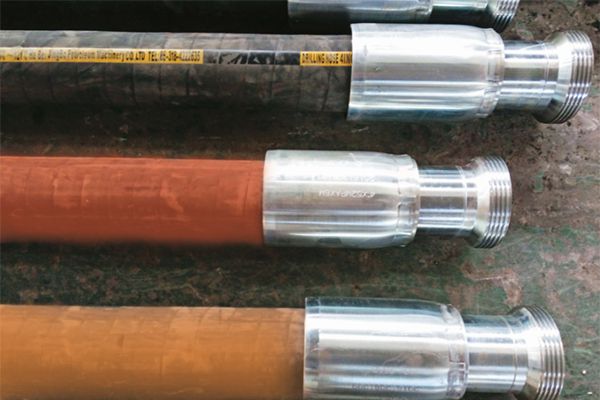

Tube Colors: black, orange and tangerine
Standard: API Spec 7K
Working Temperature: -20℃~+121℃

Technical Parameters
Internal Diameter mm (in) 51(2") 64(21/2) 76(3)
Class A B C D E F G A B C D E F G A B C D E F G
Working PressureMpa
(Psi)		 11
1500		 14
2000		 28
4000		 35
5000		 52
7500		 70
10000		 105
15000		 11
1500		 14
2000		 28
4000		 35
5000		 52
7500		 70
10000		 105
15000		 11
1500		 14
2000		 20
4000		 35
5000		 52
7500		 70
10000		 105
15000
Test PressureMpa 22
3000		 28
4000		 56
5000		 70
10000		 104
15000		 105
15000		 157.75
22500		 l 22 i
3000		 28 l
4000		 56 i
8000		 70
10000		 1o4
15000		 105
15000		 157.75
225000		 2
3000		 28
4000		 56
8000		 70
10000		 104
15000		 105
15000		 157.75
225000
Min. Bend Radius
mm		 800 800 850 850 900 950 1000 900 900 1000 1000 1050 1100 1150 950 950 1050 1050 1100 1150 1150
Coupling Code TBG, LP, Union TBG, LP, Union TBG, LP, Union
Internal Diameter mm
(n)		 89( 3 1/2") 102(4") 127（5") 152(6)
Class A B C D E F G A B C D E F G A B C D E F G
Working PressureMpa
(Psi)		 11
1500		 14 l
2000		 28
4000		 35
5000		 52
7500		 70
10000		 105
15000		 11
1500		 14
2000		 28
4000		 35 5000 52 7500 70 10000 11 1500 14
2000		 20
4000		 35
5000		 11 1500 14
2000		 28
4000		 35
5000
Test PressureMpa 22
3000		 28
4000		 56 8000 70
10000		 104
15000		 105
15000		 157.75
22500		 22
3000		 28
4000		 56
8000		 70 10000 104 15000 105 15000 22 3000 28
4000		 56
8000		 70 10000 22
3000		 28
4000		 56
8000		 70
10000
Min. Bend Radius
mm		 1000 1000 1100 1100 1150 1150 1200 1050 1050 1100 1100 1150 1200 1200 1200 1300 1300 1300 1300 1400 1400
Coupling Code TBG, LP, Union TBG, LP, Union LP, Union LP, Union
