Coiled Tubing BOP (Blowout Preventer)

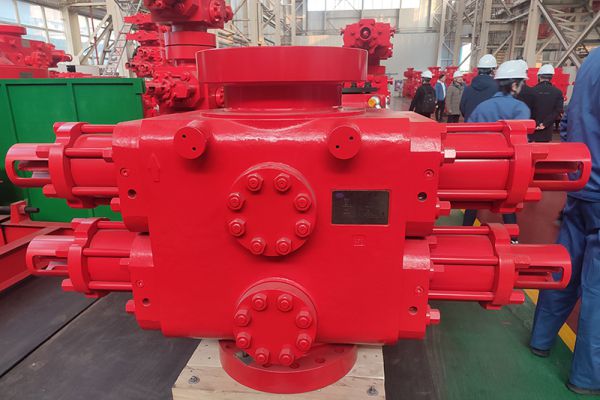

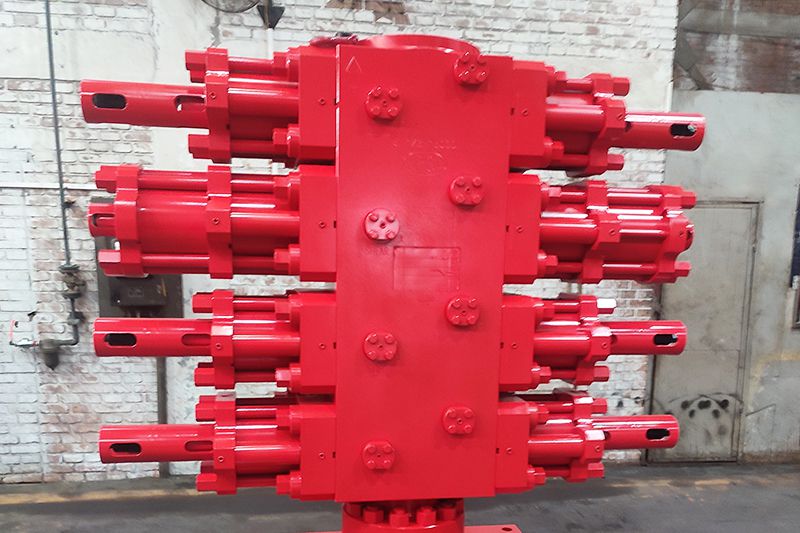

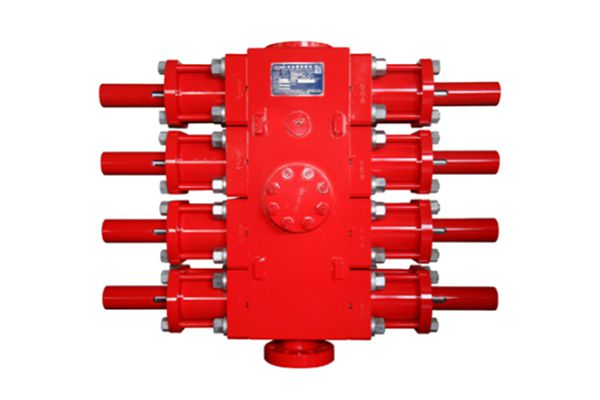

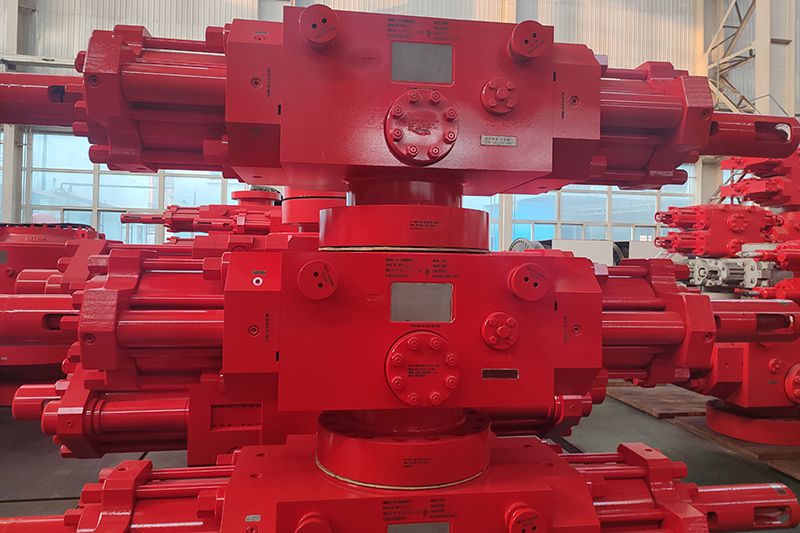

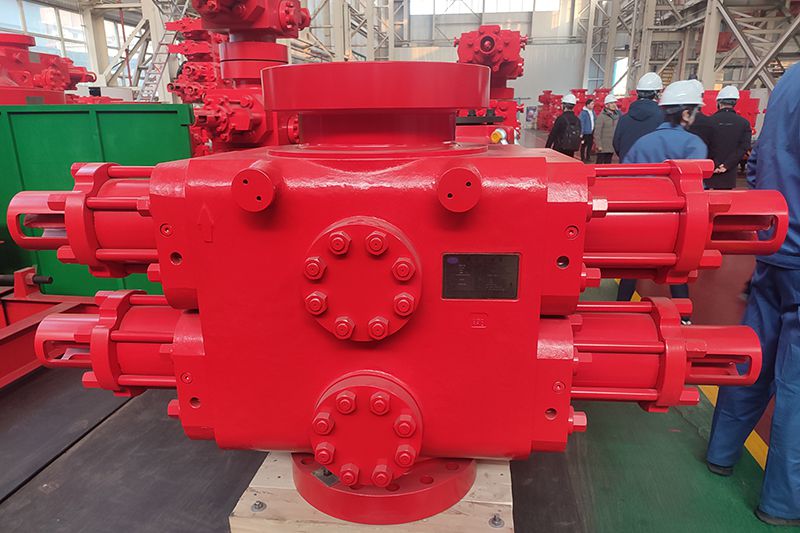

Quad Blowout Preventer
Stripper Assembly

Request a Quote

A coiled tubing BOP is a key part of a well control system. The tubing BOP is often used to control the wellbore pressure in drilling processes like well testing and repairing, in order to effectively prevent blowout accidents and create a safe working environment.

A coiled tubing blowout preventer comprises two parts, the quad blowout preventer and the stripper assembly. Both are designed, produced and tested in accordance with standards of API Spec 16A and API RP 5C7. The BOP interior surface also meets the requirements of NACE MR0175 to be H2S resistant.

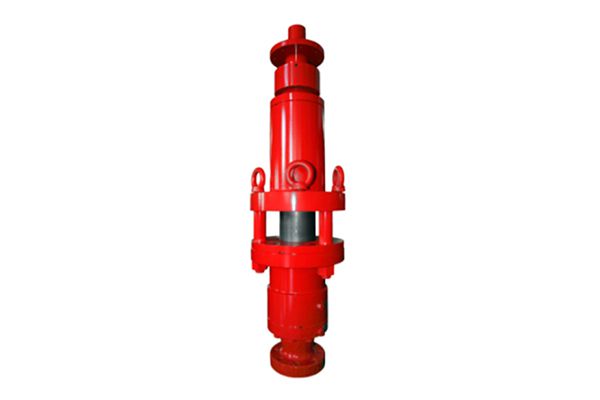

Stripper Assembly

Model	Bore Size	Rated Working Pressure	Maximum Pressure for Packing Hydraulic Control System	Intensive Working Pressure of the Packing Hydraulic Control System	Maximum Pressure for Round Window Hydraulic Control System	Intensive pressure of the Round-window Hydraulic Control System	Oil Consumption to Open	Oil Consumption to Close	Temperature Rating	Matching Packing	Top Connection	Bottom Connection	Overall Dimension H		Weight
FPH6.5-70	65mm 29/16"	70 MPa 10.000 psi	21 MPa 3,000 psi	31.5 MPa 4,500 psi	10 MPa 1,450 psi	31.5 MPa 4,500 psi	0.7 L 0.18 gal	2L 0.53 gal	T20 (-29～1219℃)	1”1 1/4, 1 1/2”packing	4.75-4-ACME Male union	2.9/16”-10,000 psi Flange connection	1190 mm 46.85”	235 kg 518Ib
FPH6.5-35	65mm 29/16"	35 MPa 5000 psi	21 MPa 3000 psi	31.5 MPa 4500 psi	10 MPa 1450 psi	31.5 MPa 4500 psi	0.7 L 0.18 gal	2L 0.53 gal	T20 (-29~121℃)	1”,11/4, 1 1/2”packing	4.75-4-ACME Female union	4.75-4-ACME Female union	892 mm 35.12"	182 kg 401 Ib

Quad Blowout Preventer

Model	Bore Size	Rated Working Pressure	Rated Working Pressure of the Hydraulic Control System	Recommended Hydraulic Operating Pressure	Oil Consumption to Open	Oil Consumption to Close	Body Side Outlet	Temperature Rating	Matching Packing	Top Connection	Bottom Packing	Overall Dimension H	Weight
4FZ6.5-70	65 mm 2 9/16"	70 MPa 10000 psi	21 MPa 3000 psi	8.4～10.5 MPa 1,200～1,500 psi	1.5L 0.40 gal	1L 0.26 gal	21/16"-10,000 psi	T20 (-29~121℃)	C.S.O. SBR. Slip Ram (1",13/4"), 1 1/2",1 1/4", 1 3/4"	2.9/16'-10,000 psi Studding connection	2.9/16"-10,000 psi Flange Connection	930mm 36.61"	1020 kg 2249 lb
	65 mm 2 9/16"	70 MPa 10000 psi	21 MPa 3000 psi	8.4～10.5 MPa 1,200~1,500 psi	1.5L 0.40 gal	1L 0.26 gal	21/16"-10,000 psi	T20 (-29~121℃)		6.312-4-ACME Union connection	29/16"-10,000 psi Flange Connection	950 mm 37.40"	1107 kg 2441Ib
4FZ6.5-35	65 mm 2 9/16"	35 MPa 5000 psi	21 MPa 3000 psi	8.4～10.5 MPa 1,200~1,50	1.5L 0.40 gal	1L 0.26 gal	21/16"-5,000 psi	T20 (-29~121℃)	1.9",1.66",23/8"	4.75-4-ACME Male union	4.75-4-ACME Female union	550 mm 21.65"	956 kg 2108 Ib
4FZ13-70	130 mm 5 1/8"	70 MPa 10000 psi	21 MPa 3000 psi	8.4～10.5 MPa 1,200～1,500 psi	3.3L 0.87 gal	3.6L 0.95 gal	21/16"-10,000 psi	T20 (-29~121℃)	C.S.O. SBR. Slip Ram 2",2 3/8"	51/8"-10,000 psi Flange Connection	5.1/8"-10,000 psi Flange Connection	1476 mm 58.1"	2766 kg 6098 Ib
