High Pressure Flexible Composite Hoses
Delivery Hoses for fuel, oil, gas and chemicals

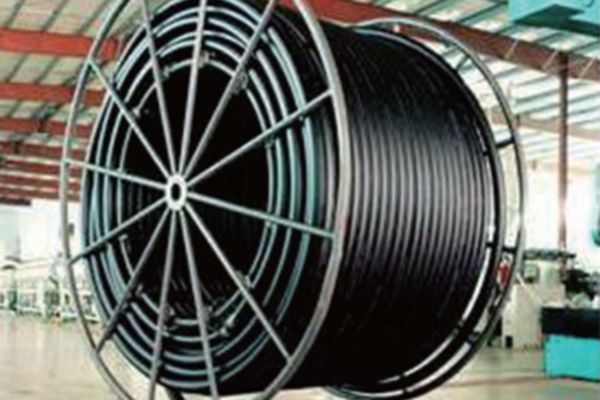

High pressure flexible composite hoses are a type of drilling hoses made from polymer composites. The composite hoses consist of four layers, a polyethylene (PE) inner tube, a stainless steel tube, a reinforcement layer and a protection cover. The flexible lines can be used to deliver oil, gas, water and chemicals. The composite lines have a wide spectrum of advantages, from high strength, anti-corrosion, scaling resistance, wear resistance, insulation, high flexibility and a long service life.

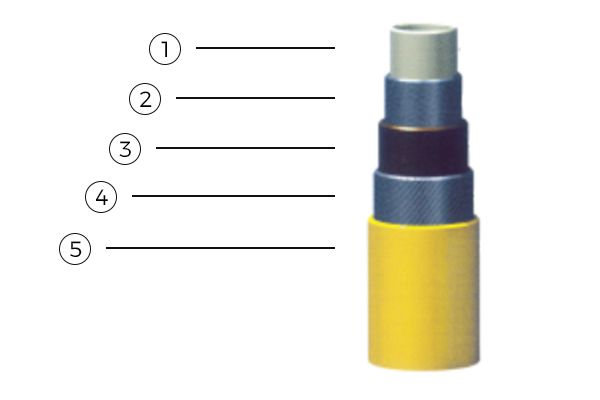

Structure (from the inside to the outside)
- Inner tube;
- Reinforcement layer;
- Wear-resistant layer;
- Reinforcement layer;
- Outer protection layer
Technical Parameters
| Inner Diameter (mm) | Working Pressure (MPa) | Min. Bend Radius (mm) |
| 25 | 16 | 300 |
| 40 | 25 | 450 |
| 40 | 16 | 450 |
| 40 | 6.4 | 450 |
| 50 | 25 | 500 |
| 50 | 16 | 500 |
| 50 | 6.4 | 500 |
| 60 | 25 | 600 |
| 60 | 16 | 600 |
| 60 | 6.4 | 600 |
| 65 | 25 | 700 |
| 65 | 16 | 700 |
| 65 | 6.4 | 700 |
| 75 | 16 | 750 |
| 75 | 6.4 | 750 |
| 90 | 16 | 800 |
| 90 | 6.4 | 800 |
| 102 | 16 | 900 |
| 102 | 6.4 | 900 |
| 125 | 6.4 | 1000 |
| 150 | 6.4 | 1200 |
| 175 | 6.4 | 1500 |
| 200 | 6.4 | 2000 |
| 25 | 16 | 300 |
(With models customizable as customers order)
